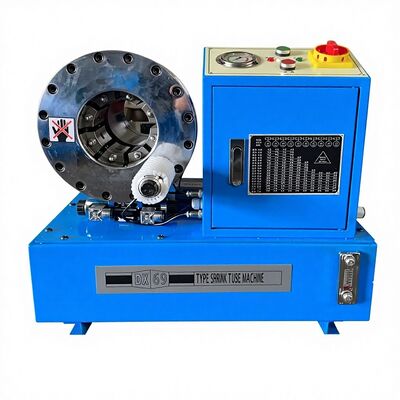

CE RoHS Certified Hydraulic Hose Crimping Machine with 640T Crimping Force 14-87mm Range and 10 Die Sets for Rubber Hose Assembly
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechatten: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Krimpbereik | 14 - 87 mm | Grootte van de slang | 2inch 4Shipping en behandeling |
|---|---|---|---|
| Strijksets | 10 | Kleur | Blauw |
| Max. Opening | 25 mm | Krimpkracht | 640T |
| Productnaam | Lidstaten - de Plooiende Machine van DX69 | Sollicitatie | Werkplaats |
| Systeemdruk | 31,5 mpa | Stroom | 3KW/4KW |
| maat | 630*450*560mm | Gewicht | 190 kg |
| Markeren | 640T Crimping Force Hose Crimping Machine,14-87mm Crimping Range Hydraulic Hose Crimping Machine,10 Die Sets Rubber Hose Assembly Making Machine |
||
Productomschrijving
CE RoHS Certified Hydraulic Hose Crimping Machine With 640T Crimping Force 14-87mm Range And 10 Die Sets For Rubber Hose Assembly
Hydraulic Pipe Pressing Machine DX69 Rubber Hose Assembly Making Machine
64mm Hydraulic Pipe Pressing Machine DX69 For Rubber Hose Assembly Making
HYDRAULIC HOSE CRIMPING PRESS MACHINE MS - DX69
MS-DX69 is renowned for its high speed and precision crimping capabilities. This machine is designed for crimping hydraulic hose and fittings ranging from 1/4" to 2" with four to six steel wire braided construction. Available in single phase or three phase configurations to meet your specific requirements.
KEY FEATURES
- Precise crimping with substantial force
- High stability with quality components
- Operator-friendly design for ease of use
- Simple operation with enhanced safety features
- Hydraulic back positioning system
TECHNICAL SPECIFICATIONS
| Model | DX-69 Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4 Layers |
| Max. Opening | 25 (mm) |
| Die Sets | 10 |
| Die Set Type | 69 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) / 4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 560 (mm) |
| Weight | 190 (KG) |
69 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 14 mm | 35 |
| 14 | 14 - 16 mm | 60 |
| 16 | 16 - 20 mm | 60 |
| 20 | 20 - 22 mm | 60 |
| 22 | 22 - 26 mm | 60 |
| 26 | 26 - 30 mm | 70 |
| 30 | 30 - 38 mm | 70 |
| 38 | 38 - 46 mm | 70 |
| 46 | 46 - 54 mm | 80 |
| 54 | 54 - 64 mm | 80 |
| 64 | 64 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
Important Notes:
1) Customized die sets are available upon request
2) Special voltage options: 110V, 208V, 240V, 415V
3) * indicates non-standard die sets
1) Customized die sets are available upon request
2) Special voltage options: 110V, 208V, 240V, 415V
3) * indicates non-standard die sets
STANDARD DELIVERY INCLUDES
- Hose Crimping Machine
- Foot Pedal
- 10 Die Sets
- Operation Manual
- Consumable Accessories
OPTIONAL ACCESSORIES
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
